Forward Controls Design Enhanced Mag Release Button, Blind Hole, QPQ coated

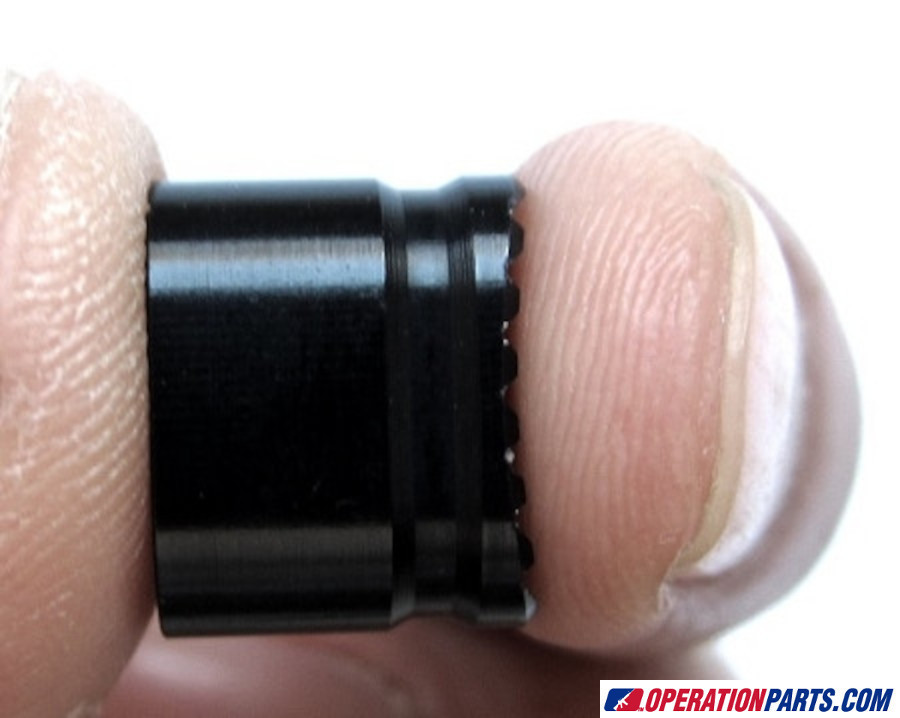

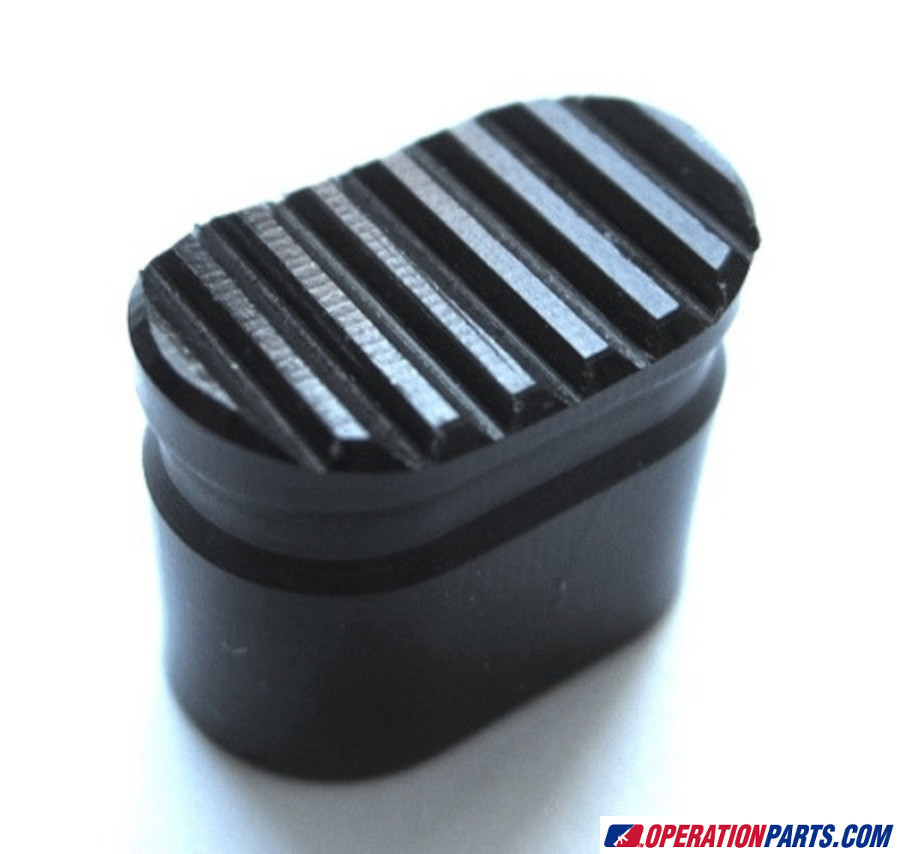

The Enhanced Magazine Release-Continuous Serrations features a slightly curved button surface to fit the natural curvature of your finger. The form fitting curve, along with horizontal serrations, create a self centering surface that inhibits the finger’s vertical movements. The EMR-C has an uninterrupted surface and serrations, its taller profile makes it easier to press and is only 0.04 taller than the factory magazine release button. When installed, the EMR-C has a 0.08 protrusion above the mag release button fence on most forged receivers.

Part # EMR-HC/EMR-HC AA Categories , , , , , Brand:

$16.15

Description

Due to the EMR-C’s installed height which protrudes 0.08″ over the mag release fence when installed (only 0.06″ or 0.07″ of  the magazine release button travel is needed to drop a magazine), EMR-C is recommended for 7.62mm ARs only, though it does work on 5.56mm ARs and M16s.  For defense and duty ARs and M16s, please use our EMR that has only a 0.01″ protrusion over most forged receiver magazine release fence.

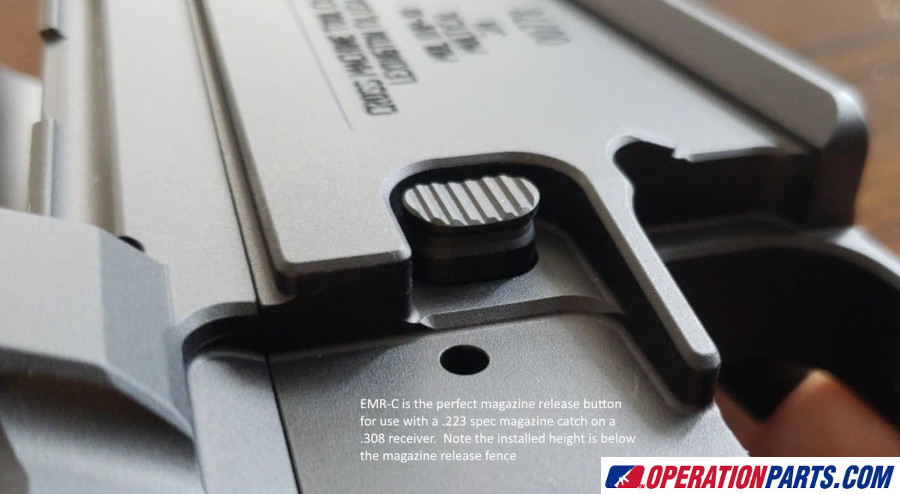

For .308 ARs, the EMR-C’s taller profile will allow you to use AR15/M16 spec mag catch and ambidextrous mag catch/release.  An EMR-C installed on a .308 AR will not protrude over the mag release fence.

Made from 4140 bar stock and QPQ coated.

Additional information

Surface

,

WARNING:

This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
