Forward Controls Design 5.56mm Spec Handguard, Black

RHF (Railed Handguard, Forward Controls) is based on the superb CMT UHPR Mod2, with full length 1913 rails at 12 o’clock, and MLOK at 3, 6, and 9 o’clock.
Since its introduction in 2018, RHF has progressively become more robust and durable with the deletion on lightening cuts and slots.  It’s gained some weight in the latest 2020 version, but we value strength durability far more than light weight.  It directly contradicts the light weight fad which, like all fads, are rarely about improving anything for the end user.
Part # RHF Categories , , , , , , Brand:

$185.25 – $194.75

Description

RHF is machined from 6000 series extruded aluminum, its barrel nut is machined from 7075 aluminum, both are Type 3 anodized, while the rail mounting hardware is machined from 17-4 PH (patent pending).  RHF also incorporates anti-rotation tabs.
RHF’s inside diameter is 1.315″ and compatible with most low profile gas blocks.  Barrel nut diameter is 1.378″, barrel nut wrench is included.
RHF incorporates design input from Forward Controls, the changes include:
1. Omission of QD swivel attachment points.  Location of the front sling attachment is left to individual users.
2. Barrel cooling vents changed to the classic round shape.  One might say we’re paying homage to Knight’s Armament’s RAS and RIS where meaningful modular revolution began.
3. Simplification of the already understated aesthetics of the CMT UHPR Mod 2 handguard.

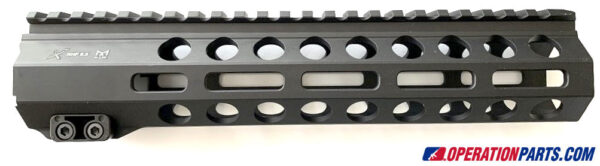

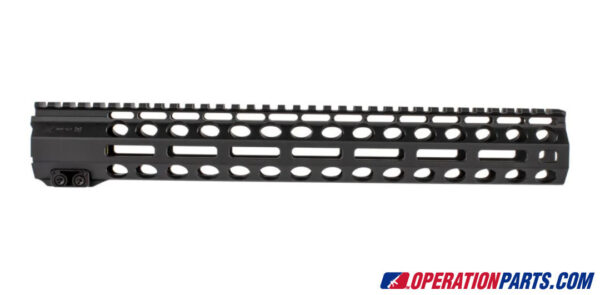

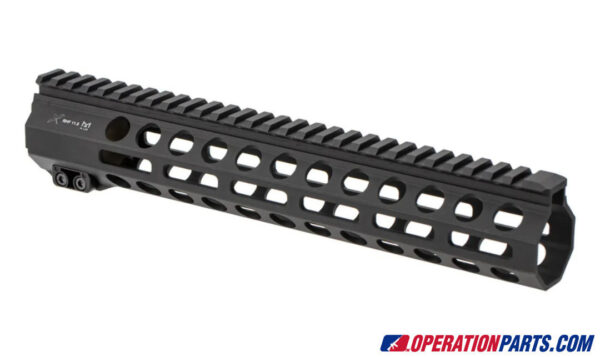

Available in 13.7″, 11.5″,  9.5″
Weight of each length as follows (total weight, including mounting bracket and bolts):
9.5″, .9.02oz
11.5″, 9.25oz
13.7″, 11.51oz
Barrel nut torque: milspec 40-50ft/lbs
Rail clamp screws torque: 45 inc/lbs.
A single use (we’ve successfully used it half a dozen times without ill effects) barrel nut wrench is included.
Made in USA.
